Demo Sport

Trek Rail 9.8 2021

Trek Rail 9.8 2021

Regular price $8,499.99 USD
Regular price Sale price $8,499.99 USD
Sale Sold out
Size

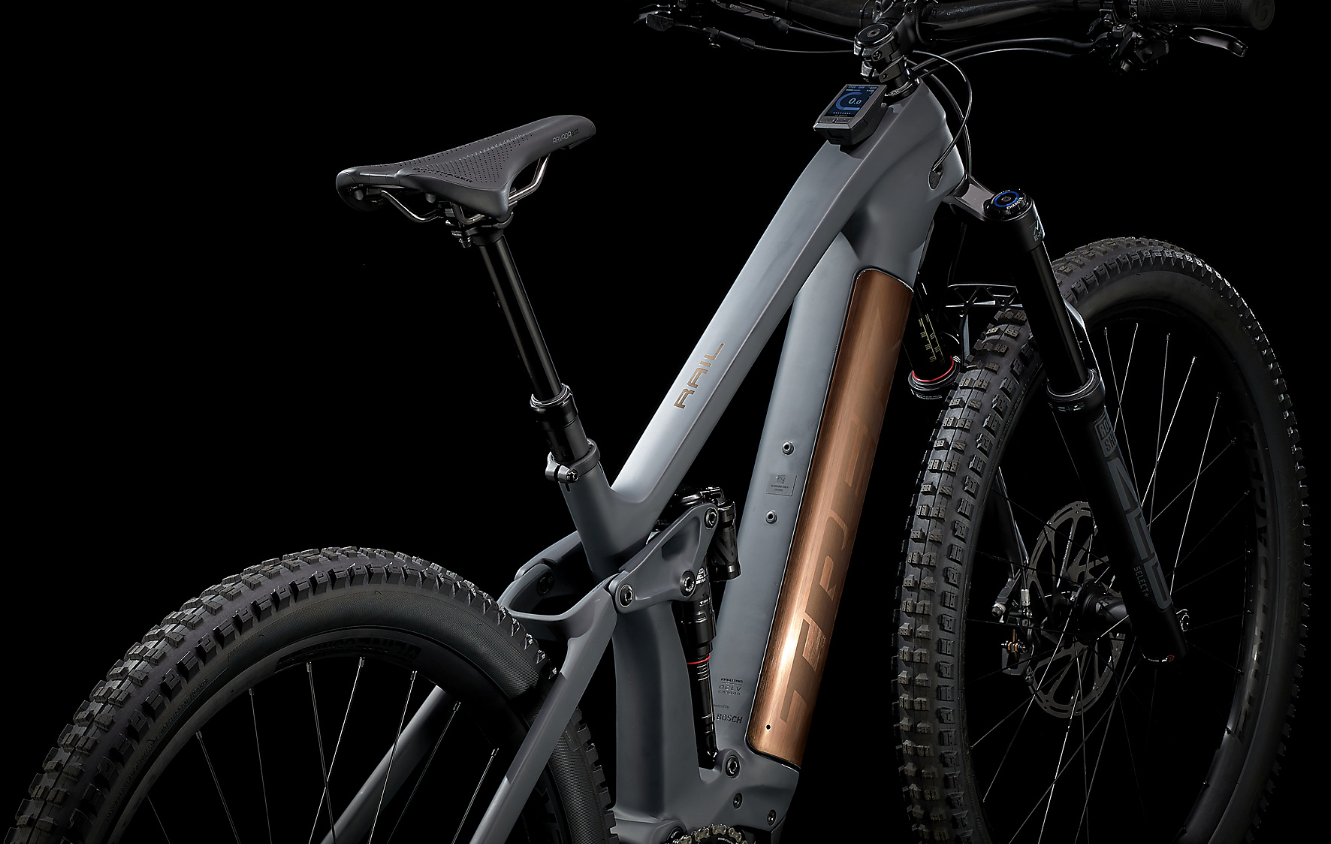

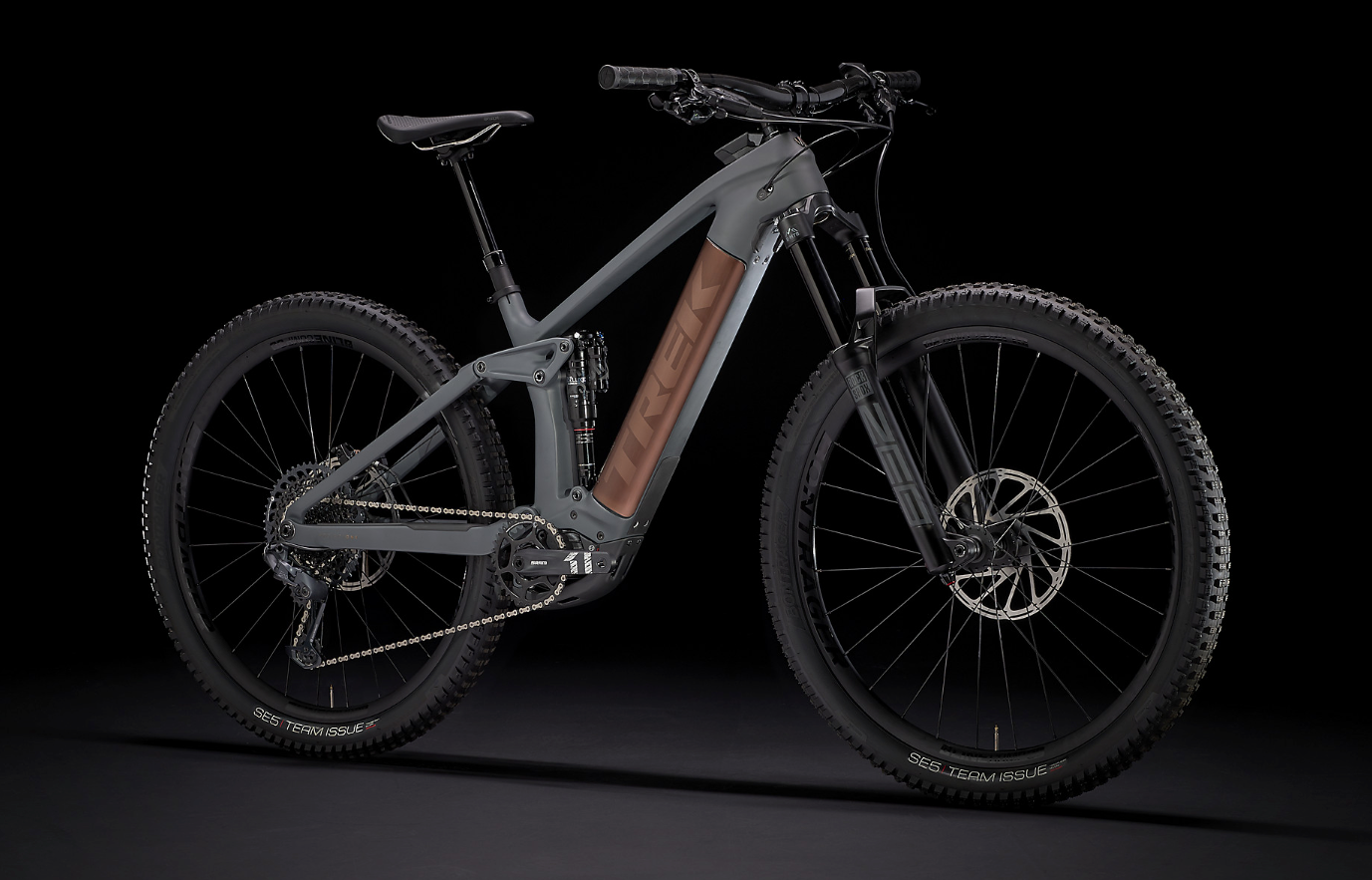

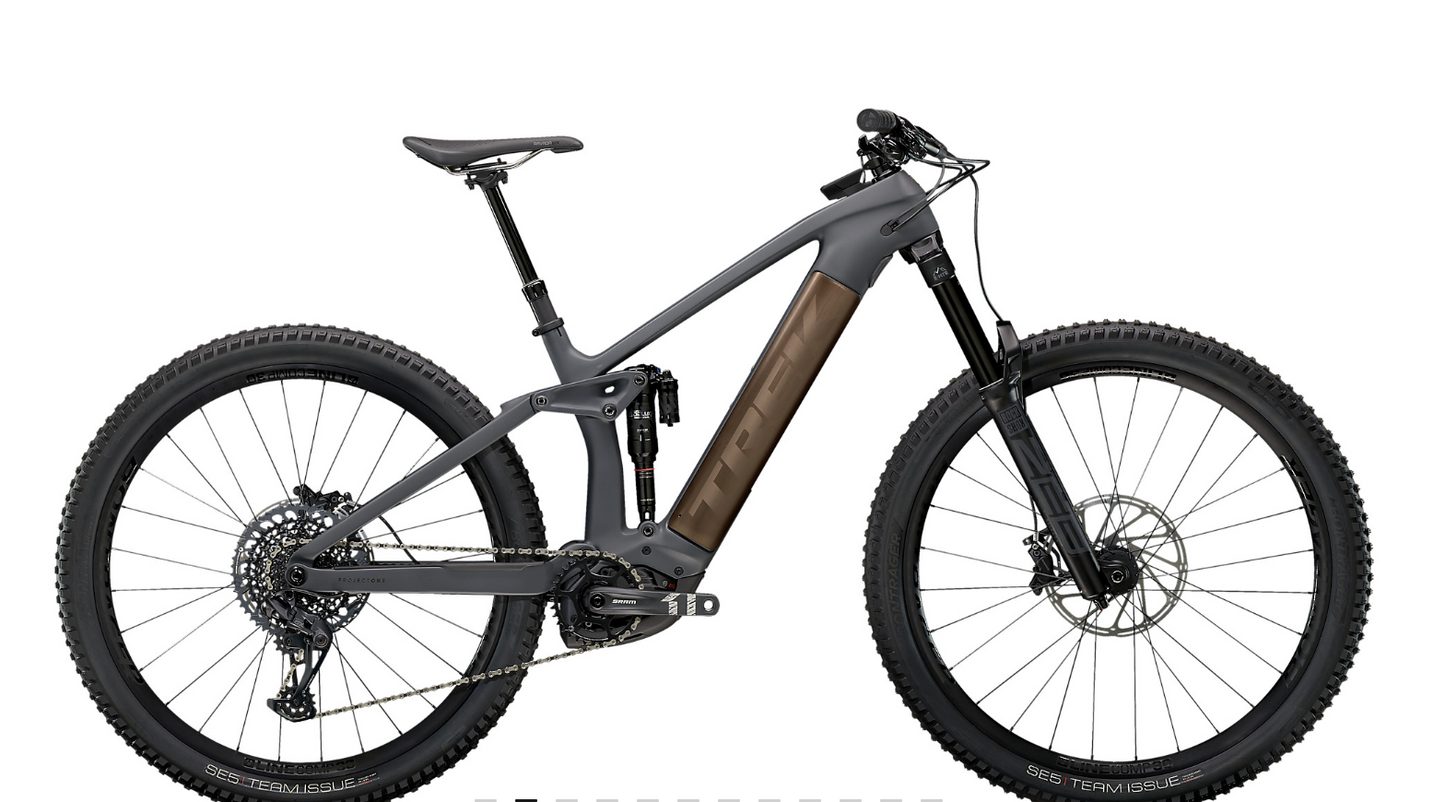

Rail 9.8 is a long-travel carbon electric mountain bike that rips just as hard as our beefiest trail rigs and powers you right back up the mountain. It features awesome upgrades to the suspension, drivetrain, and brakes for exceptional performance on the gnarliest runs. Includes dropper post.

Size Large Wheels: 29"

Frame OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Fork RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel

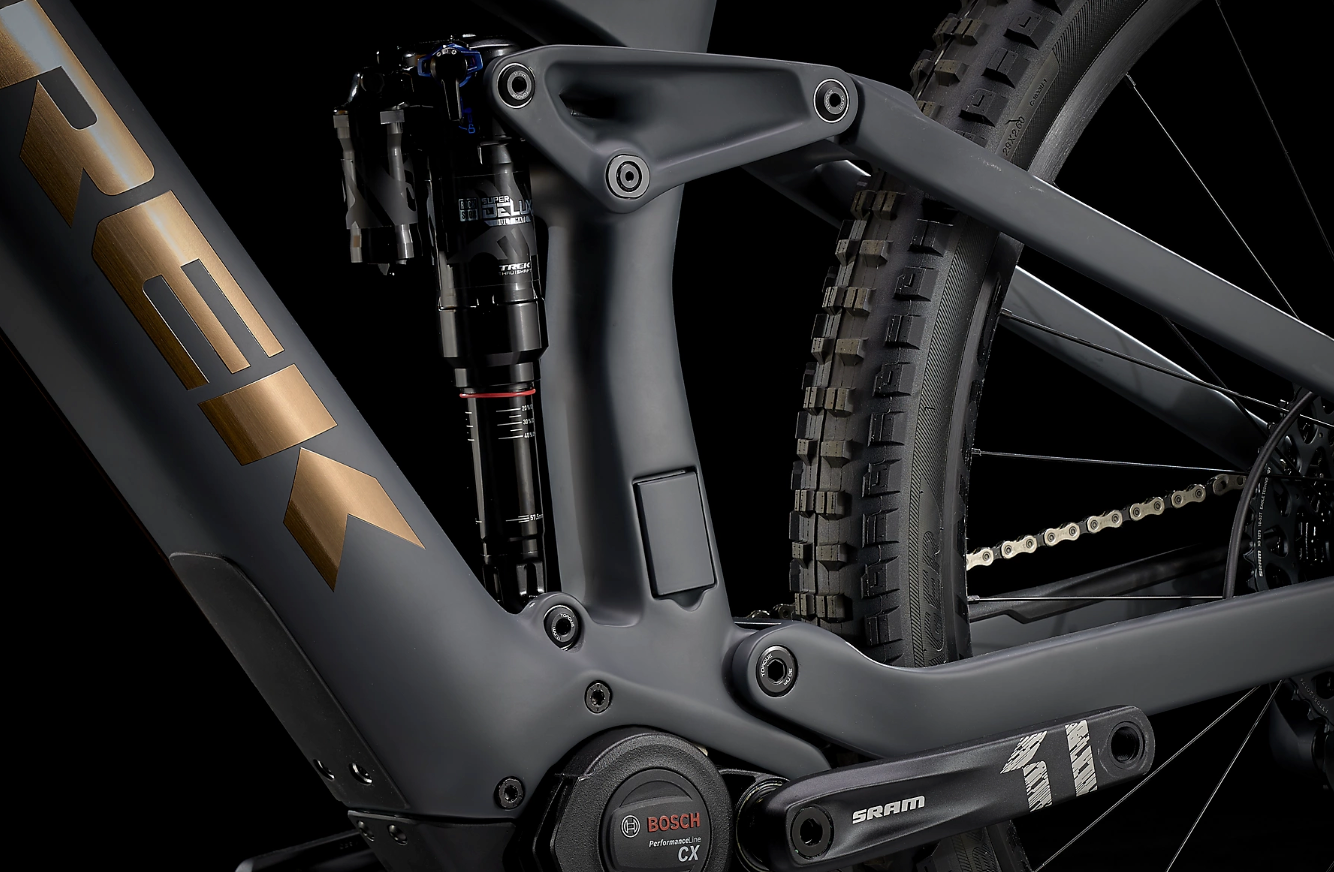

Shock RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230mm x 57.5mm
Max compatible fork travel 170mm (580mm axle-to-crown)
Wheels
expand_less

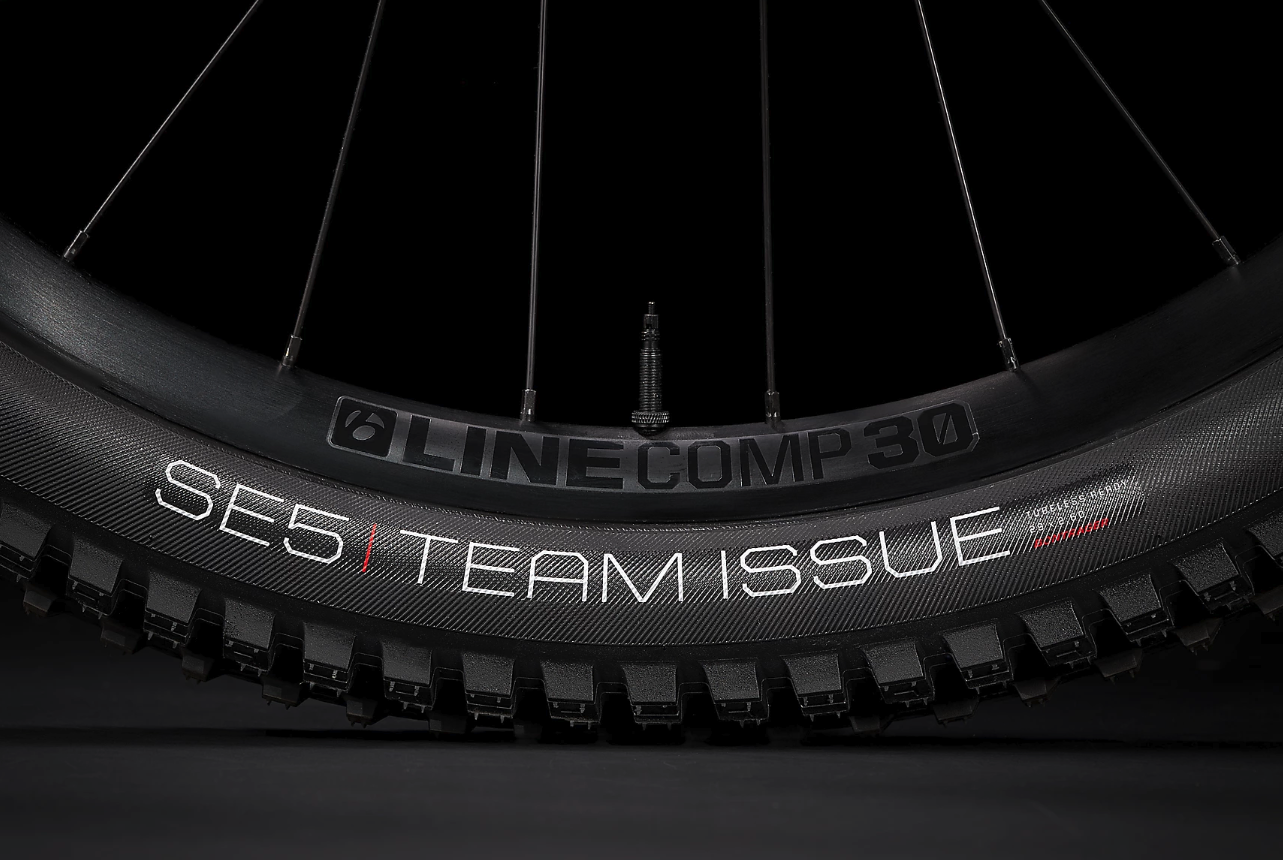

Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
Tire Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60''
Rim strip Bontrager TLR
Max tire size Frame: 29x2.60" Fork: See manufacturer
Drivetrain
expand_less
Shifter SRAM GX Eagle, 12 speed

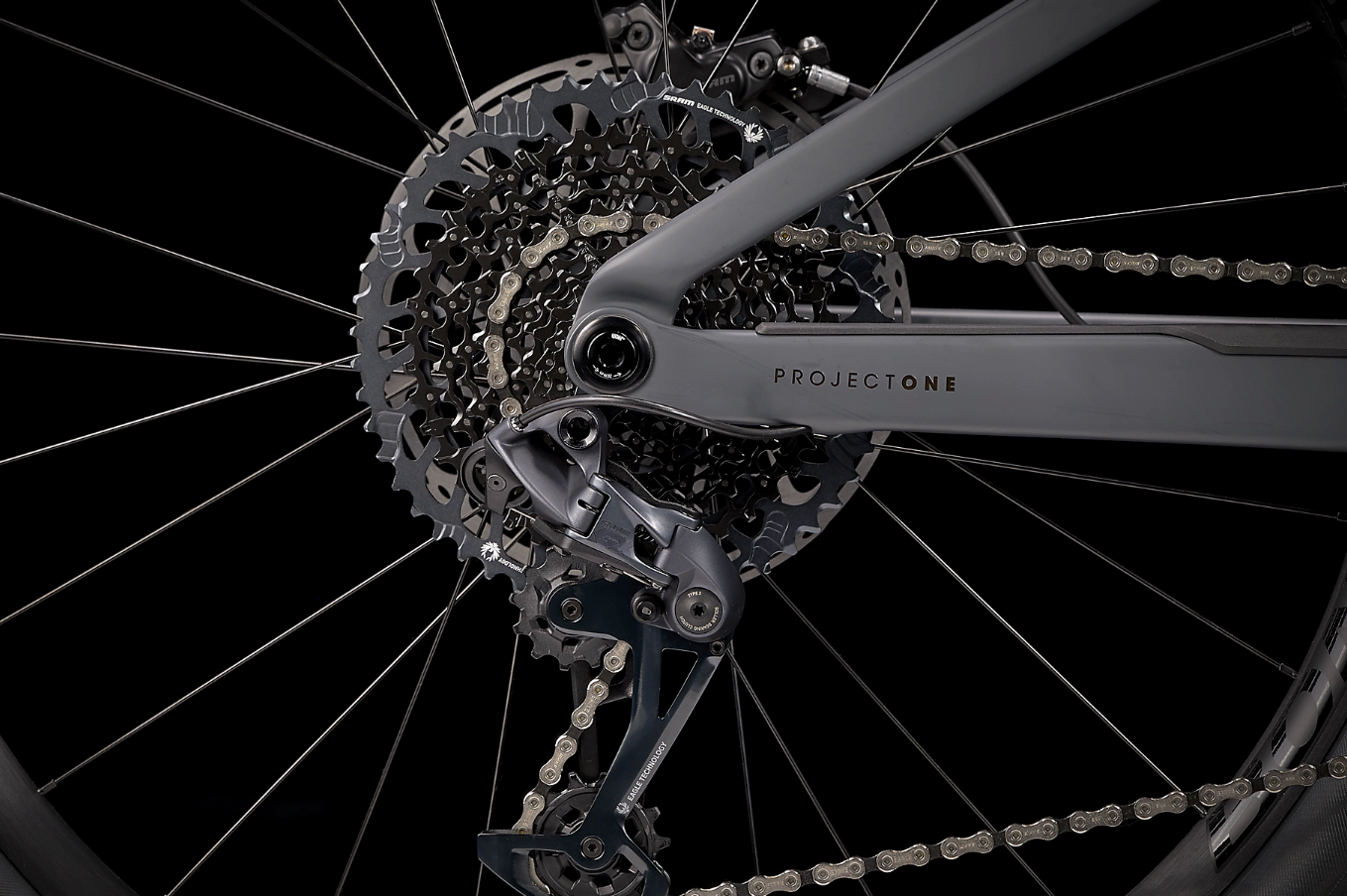

Rear derailleur SRAM GX Eagle
Crank SRAM X1 1000, 34T, 165mm length
Chainring SRAM X-SYNC 2, 34T, alloy
Cassette SRAM Eagle XG-1275, 10-52, 12 speed
Chain SRAM GX Eagle, 12 speed
Pedal VP-536 nylon platform
Max chainring size 34T
Components
expand_less
Saddle Bontrager Arvada, austenite rails, 138mm width
*Seatpost Size: S
Bontrager Line Elite Dropper, 100mm travel, internal routing, 31.6mm, 340mm length
Size: M
Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
Size: L, XL
Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6mm, 480mm length
Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips Bontrager XR Trail Elite, alloy lock-on
Stem Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom

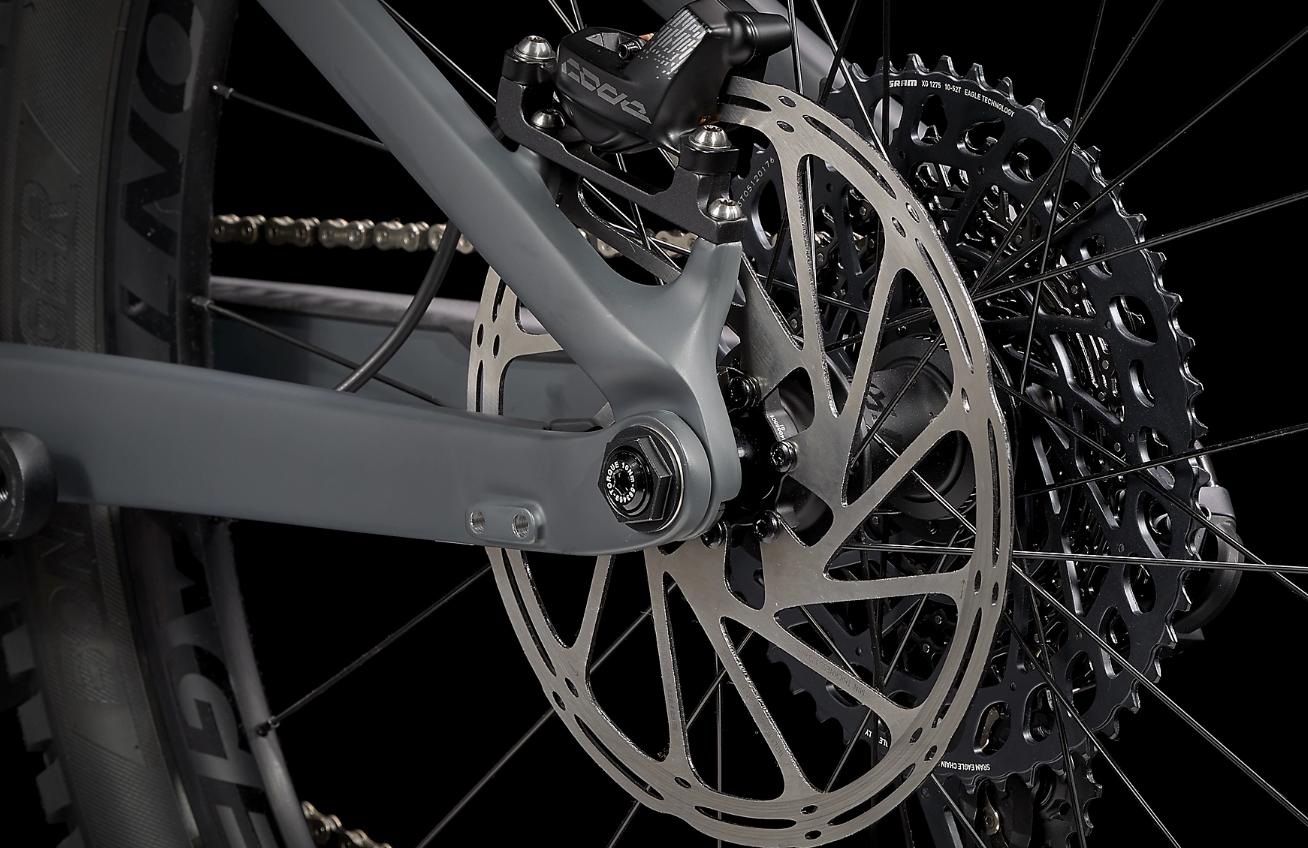

Brake SRAM Code R 4-piston hydraulic disc
*Brake rotor Size: S, M, L, XL
SRAM CenterLine, 6-bolt, round-edge, 180mm
Size: S, M, L, XL
SRAM CenterLine, 6-bolt, round edge, 200mm
Accessories
expand_less

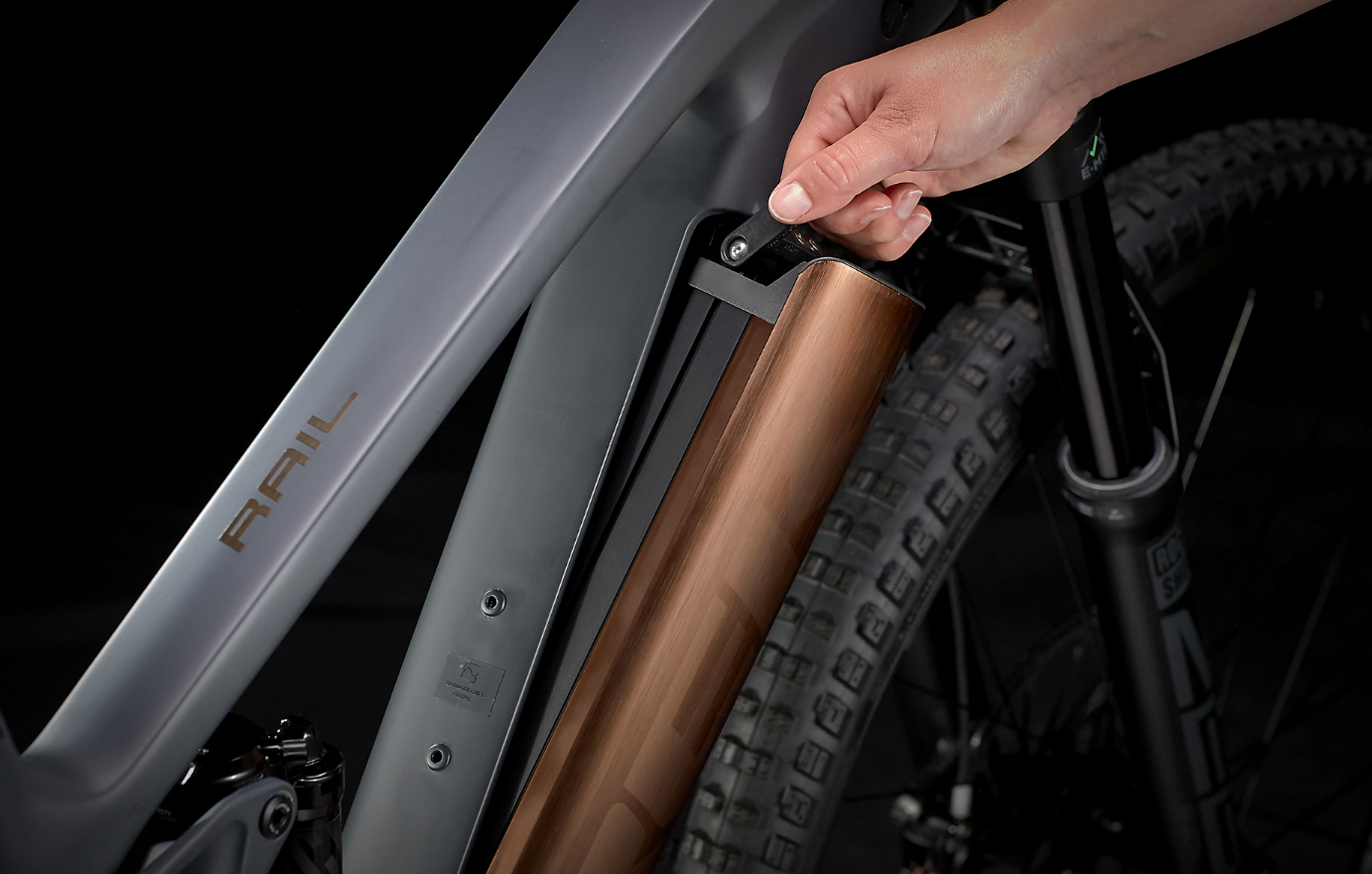

Battery Bosch PowerTube 625
Charger Bosch standard 4A (100-240V) charger

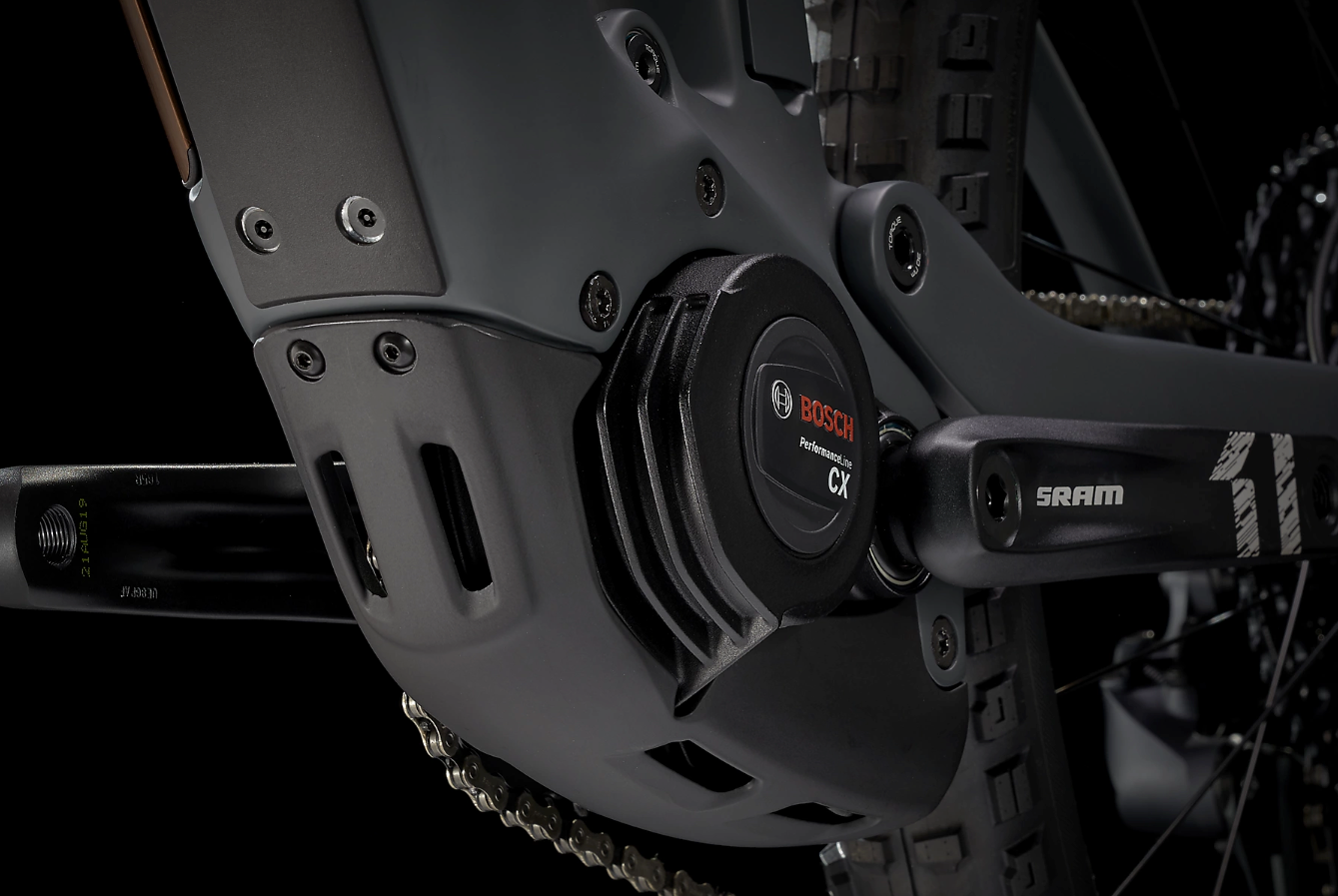

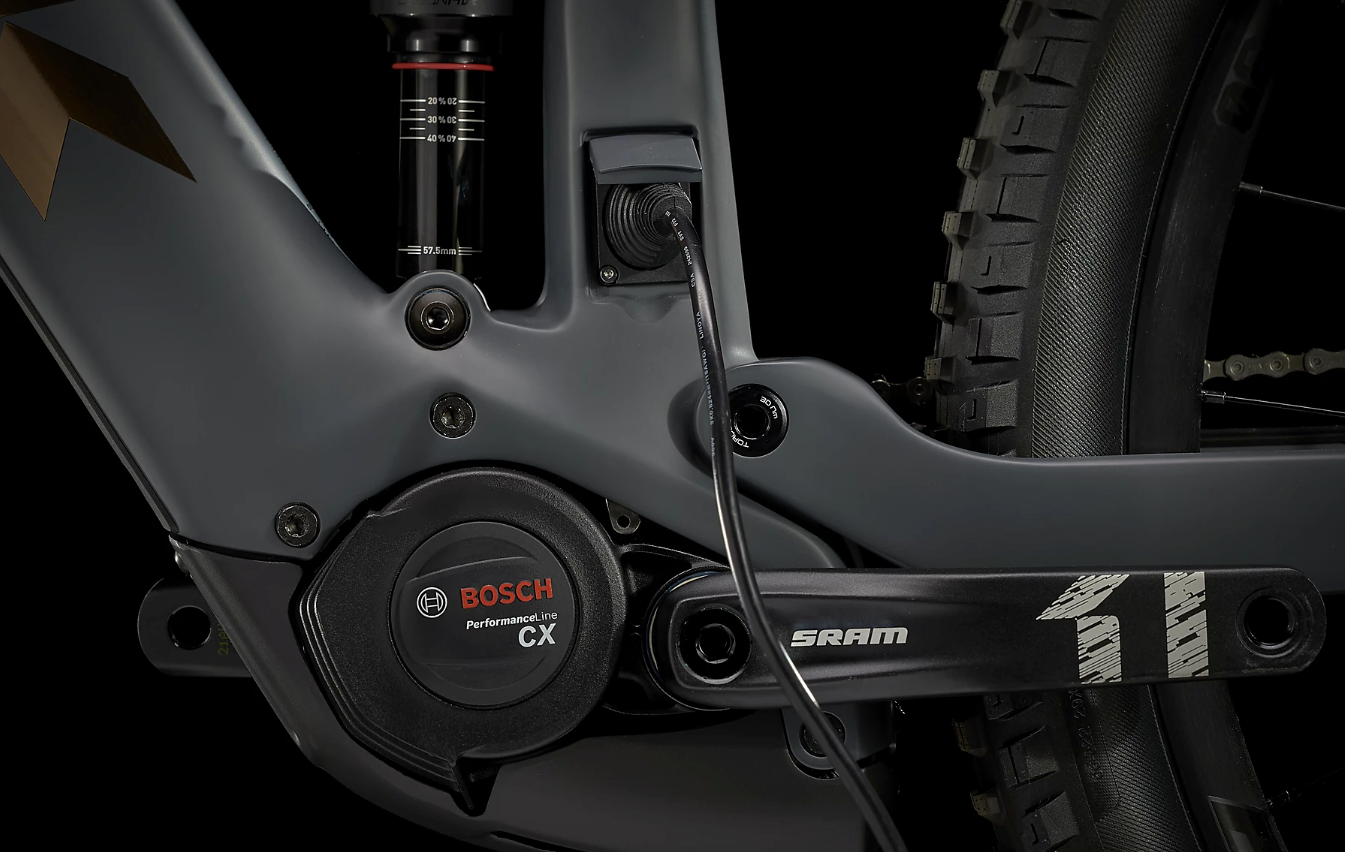

Motor Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist

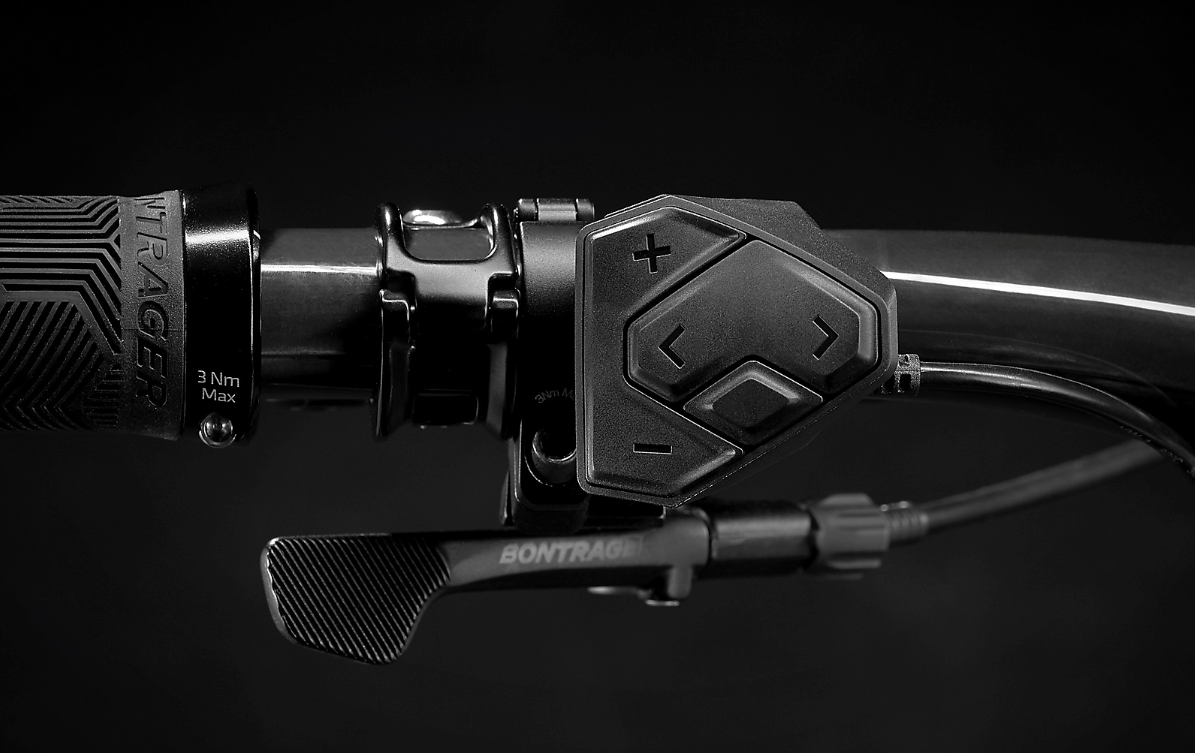

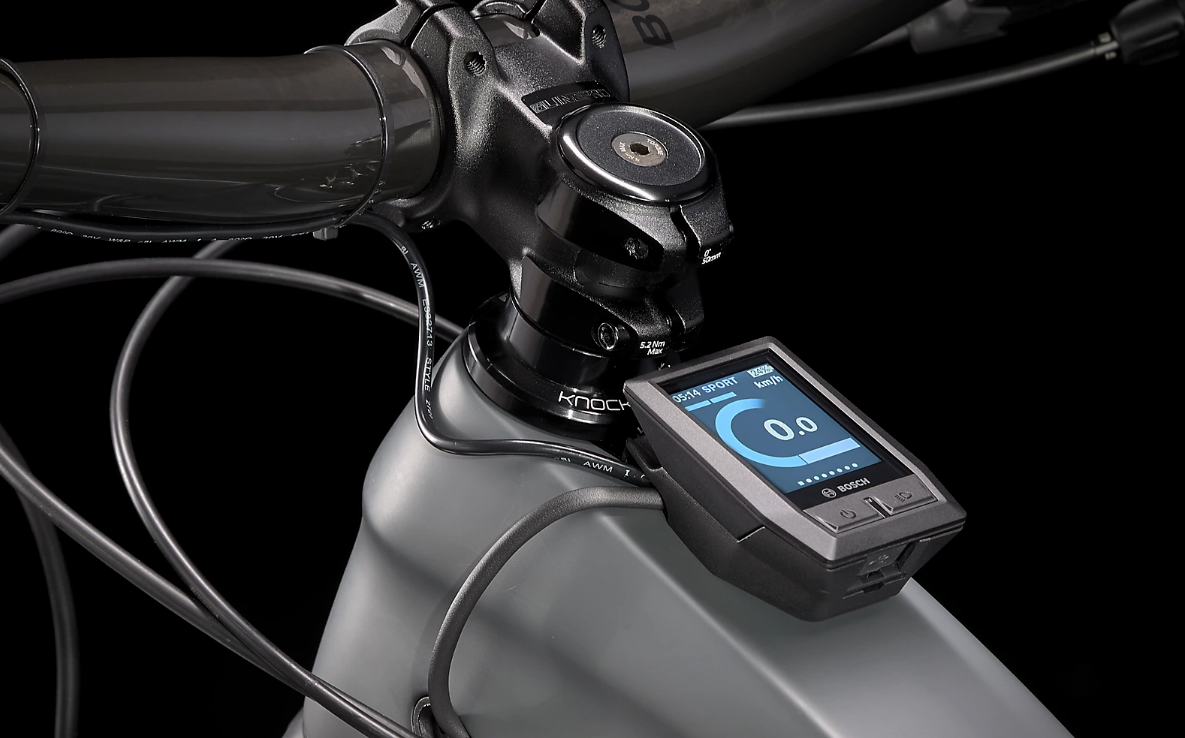

Computer Bosch Kiox with Anti-theft solution
Weight
expand_less
Weight M - 22.52 kg / 49.64 lbs (with tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Size Rider Height Inseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"
